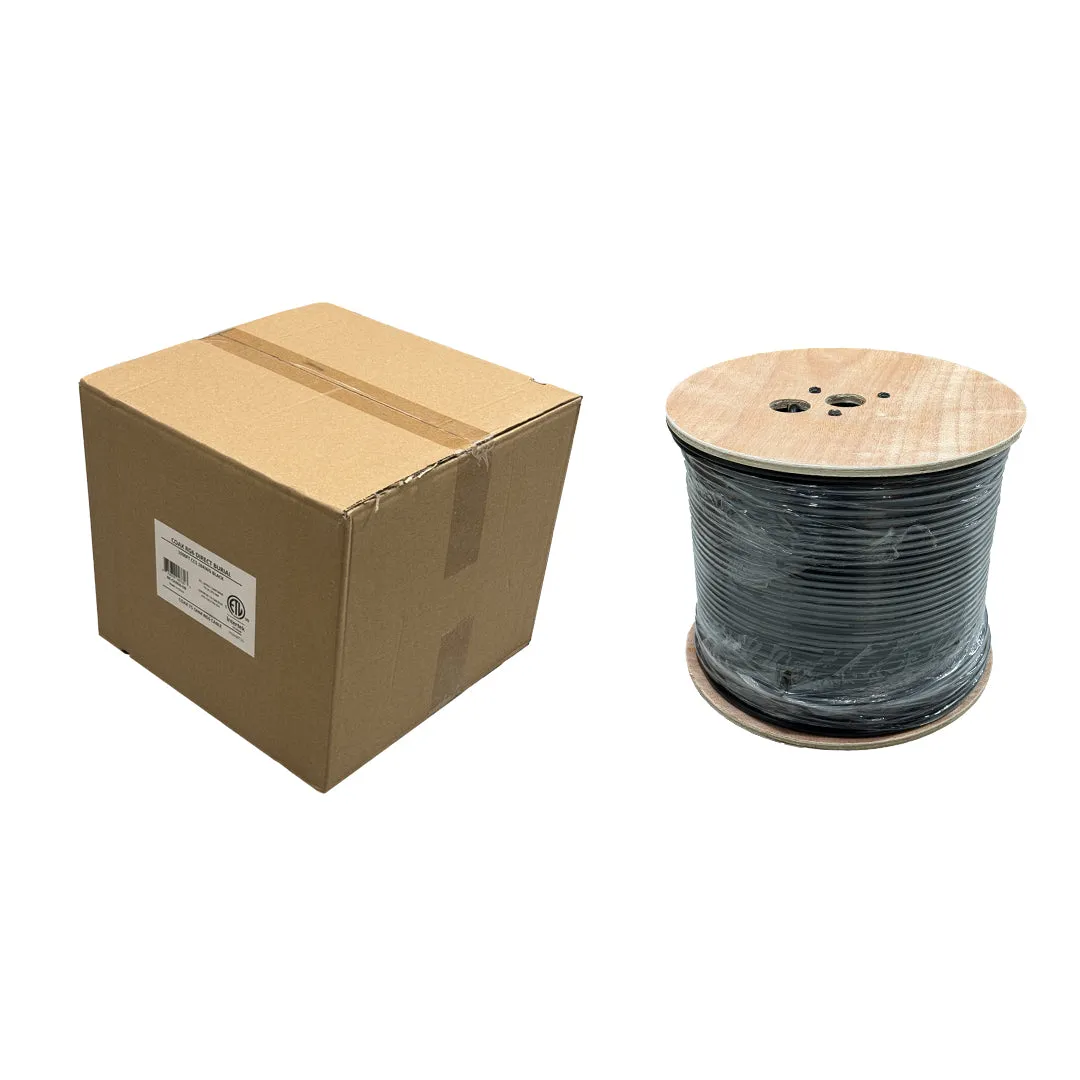

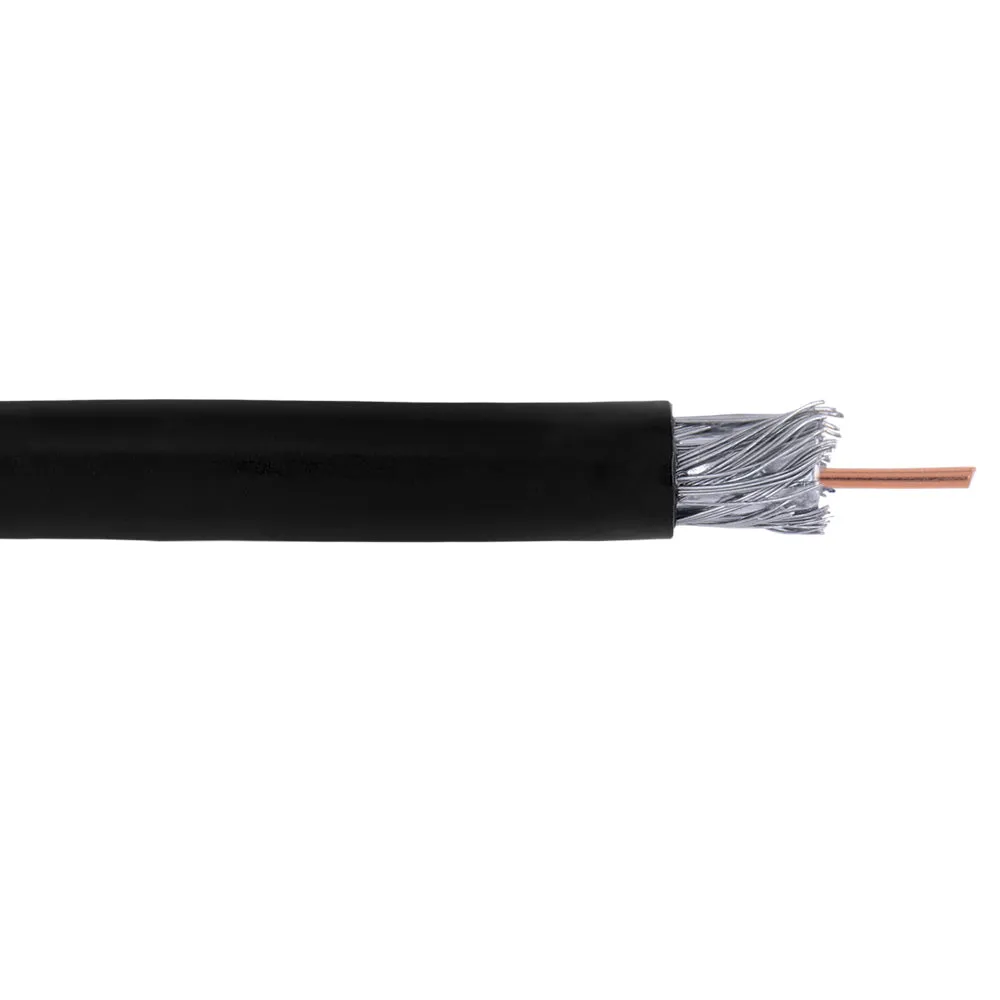

This bulk direct burial RG6 cable is 1000 feet in length and consists of a 18AWG solid center conductor. It is ideal for outdoor and direct burial CATV video applications.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 6.90mm |
| Wire Gauge | 18AWG |
| Inner Conductor Material | Copper Clad Steel |
| Inner Conductor Diameter | 1/1.02mm |
| Insulation Material | Foamed Polyethylene |
| Insulation Diameter | 4.57mm |
| Shield | 60% AL |
| Shield Diameter | 5 x 16 x 0.12mm |
| Jacket Material | Black PE |
| Jacket Diameter | 6.90mm |
| Temperature Rating | -40 ~ 105℃ |
| Performance | |
| Impedance | 75±3Ω |
| Capacitance | 54±3pF/m |
| Return Loss | 20dB Min |
| Approvals | |
| c(ETL)us | Yes |
| Environmental | |
| RoHS | Yes |
| UV | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 26.4 lbs |
